Page 6 - D-100 DMR Digital User Guide
P. 6

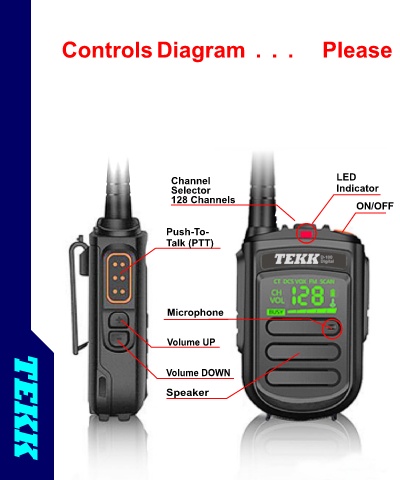

Controls Diagram  .  .  .     Please













                                Channel                       LED
                                Selector                      Indicator
                                128 Channels
                                                                 ON/OFF

                               Push-To-
                               Talk (PTT)






                               Microphone

                               Volume UP


                               Volume DOWN
                               Speaker
   1   2   3   4   5   6   7   8   9   10   11
